The Evolution of a Walk-In Shower

I just realized I have not shared any master bathroom renovation updates in a L-O-N-G time! I have shared some pictures on Instagram, but have totally been behind posting updates here! So thank goodness we finished the master bathroom portion of the renovation a couple of weeks before Thanksgiving and I am super thrilled with the final results! It was a ton of work but well worth it in my opinion…

I wanted to take some time to run through the steps we went through in the shower building process. It was a first for us and I will share with you where we did get help from contractors and where it was just me and my hubby plugging away at the job.

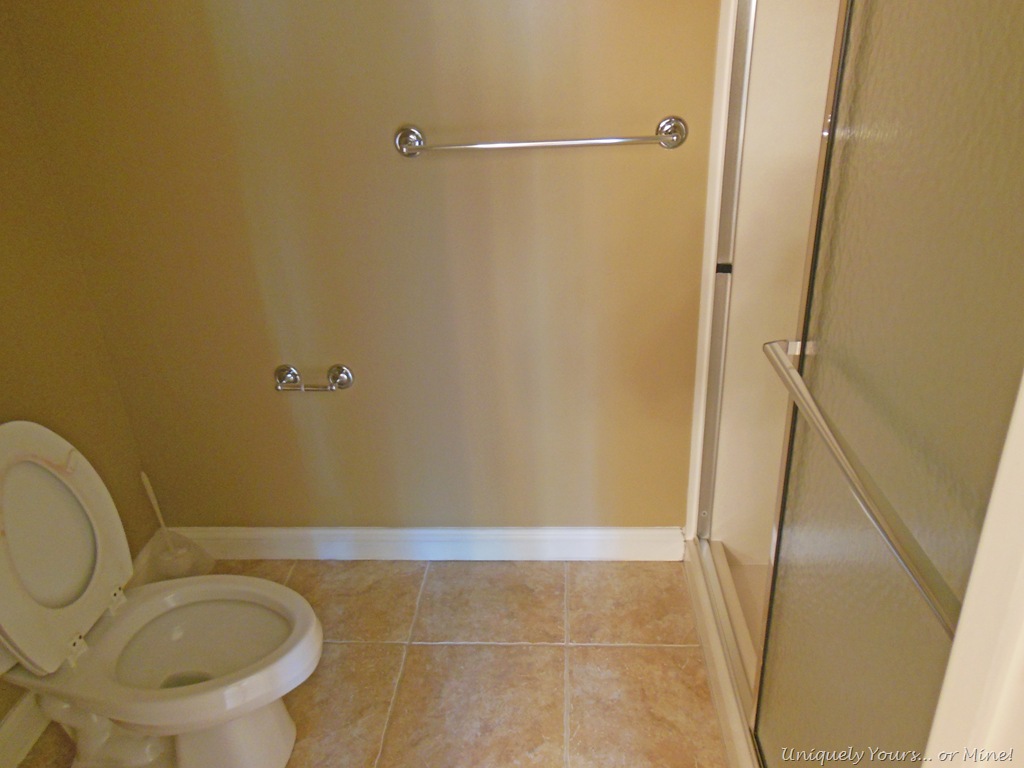

This is what we started with, hubby took this picture on the original walk through of the house, it’s a toilet and shower “room/closet” inside of the bathroom space. So the vanities and tub were all in the main room, but the toilet and shower were in a “closet” inside of the room (I hope that makes sense). It was dark, I hated it and I thought it was just strange… it had to go!

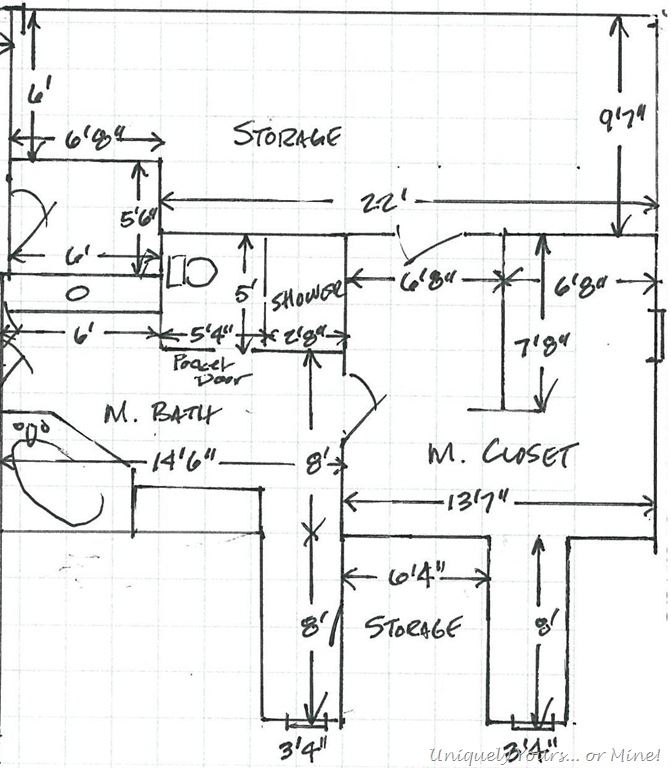

Here is the original setup of the bathroom closet area.

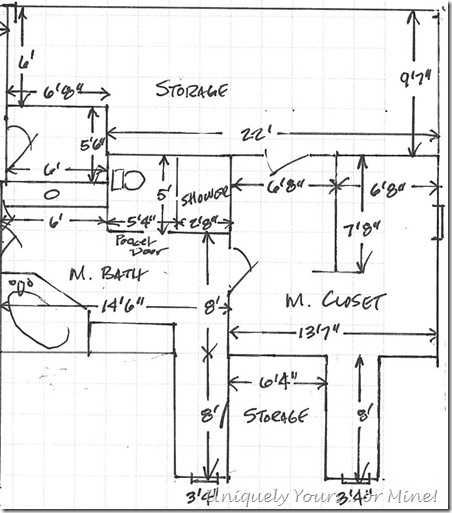

Bathroom closet plans

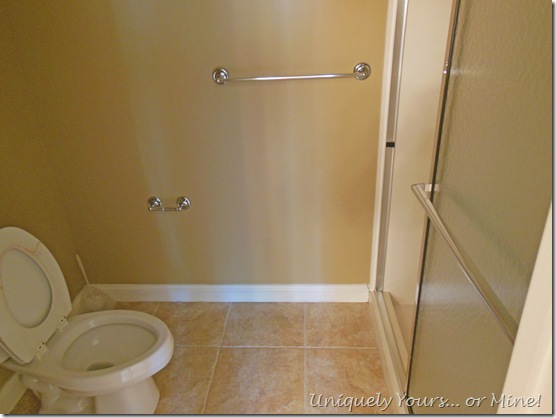

Original bathroom shower toilet combination

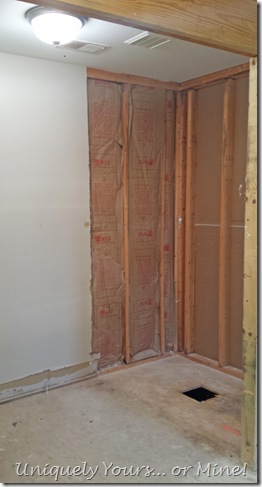

So as part of the overall bathroom remodel we removed the shower and the wall separating the closet/room from the rest of the bathroom. It was pretty easy to demo, as a matter of fact I took out the shower by myself. The walls were that faux marble, heavy, but easy to break up with a little force and of course safety gear.

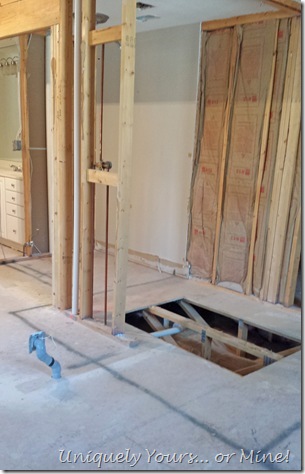

Bathroom shower renovation in progress

We laid out a rough outline of the new shower dimensions (6ft. deep x 7ft. wide) with spray paint to validate size and position within the space.

Bathroom shower renovation in progress

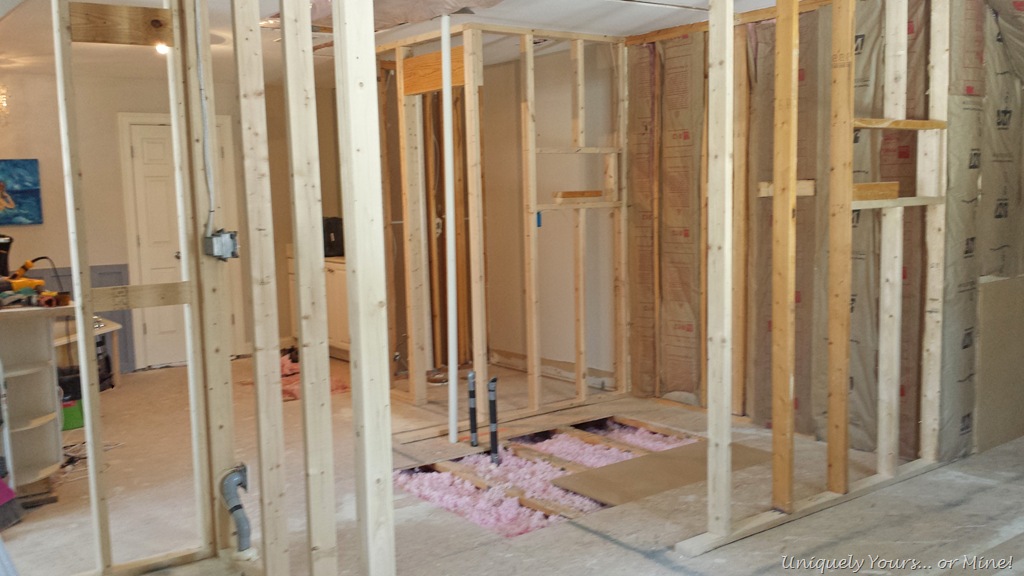

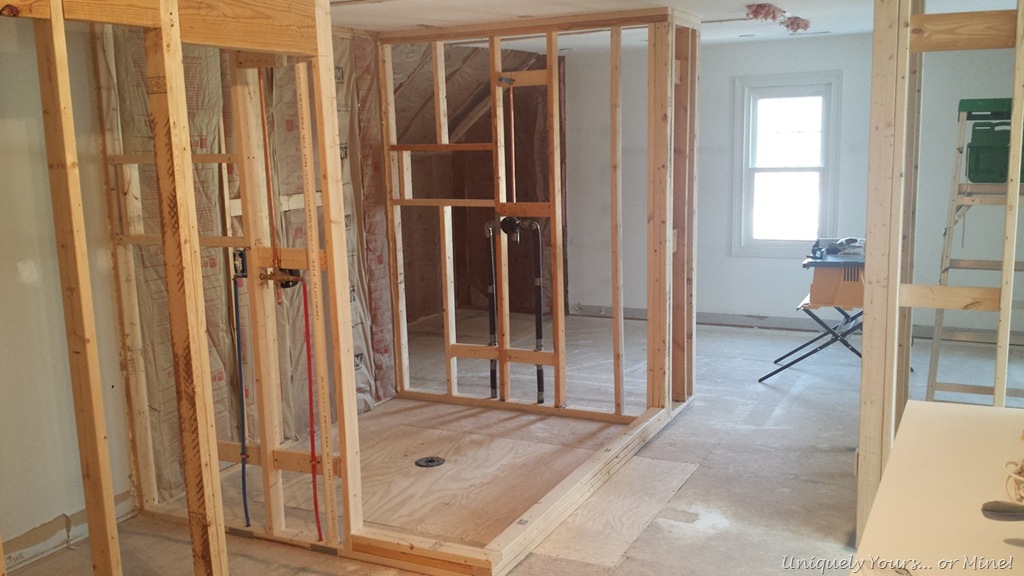

We did all of the demo ourselves, but did have a contactor come in and rebuild the walls. I helped him a lot (so I could pick up some tips for the future) and I really enjoyed working with him and learning from him as well. We also hired a insulation contractor to blow in more insulation in the floor (which is over the garage in some areas) and also wrap reflective insulation around the backside of all of the walls to help with deflecting heat off of the roof.

Bathroom shower renovation in progress

We also hired a plumbing contractor to add an additional shower head and move the drain. He had to tie the new head off of the incoming 3/4” copper pipe rather that running it straight off of the 1/2” pipe that was already there. This will allow 2 people to take a shower at the same time and get both get perfect water flow Send a kiss … just in case you were wondering why… We saved some money by locating the 3/4” junction ourselves and cutting the flooring for the plumber to gain access to the pipe.

My Super Awesome Hubby and I had to shore up the floor openings with 2×4’s attached to existing support beams in order to add plywood over the holes to close everything up. We also installed all of the bat insulation in the new spaces ourselves.

Bathroom shower renovation in progress

We hired out the drywall installation and finishing, we’ve done drywall work before… it sucks and we done do a good enough job at it so we almost always leave the large drywall jobs to the professionals… just like rough-in plumbing…

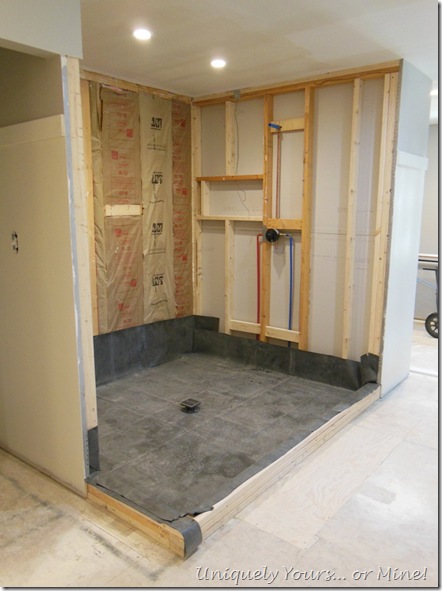

Our contractor then came back in and he and I  installed the shower liner on the shower base. Making sure that the base was free of debris and all screws were countersunk in the plywood so that nothing could puncture the liner. By the way we used a pond liner here because I couldn’t find a shower liner big enough locally. It’s made of the exact same material, but it’s a lot cheaper and was plenty big!

Bathroom shower floor installation in progress

We then mixed the Mississippi Mud base together by placing the dry material in the center of a tarp and adding the water to it in the center and shifting it back and forth by lifting the tarp up and down from the 4 corners. It’s a neat trick he learned and it made mixing the product super easy. He laid all of the mud down and using a level made sure it sloped properly towards the drain… I just watched him Open-mouthed smile

Bathroom shower installation in progress

After a few days he came back in and installed all of the concrete backer board. I then added the mesh tape to all of the seams and then filled the seams, holes and any low spots on the floor with thinset.

Bathroom shower installation in progress

After everything was dry and smooth I painted 3 coats of RedGuard over all of the walls, floors etc.

Bathroom shower installation in progress, RedGuard

We then dry-laid out our tile pattern on the floor to determine layout.

Shower tile dry fit layout

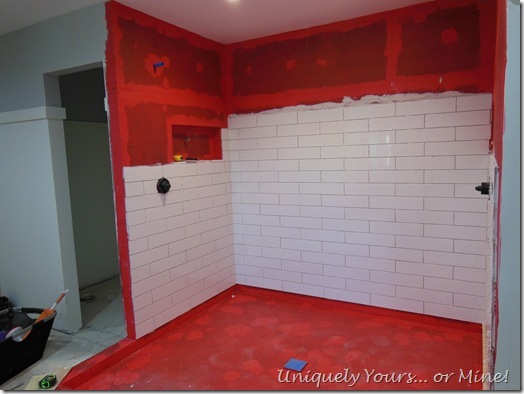

We then used a laser level and marked a level line about 3” off the floor to ensure a nice straight line, we temporarily installed a 1×2 on this line to ensure we maintained a level line. We then started applying thinset and laying the tile. We found it worked best to apply the thinset to the wall in about a 3ft square and then affix the tile to the wall. It also helped that we broke up the responsibilities, I laid the tile and my hubby marked and made all of the cuts… this was definitely a team effort!

Tiling master bathroom shower walls

I’m not going to lie to you… the herringbone tile part was a HUGE pain, I didn’t have to figure out the cuts, but it was a lot of little tile to lay and it took a long time!

Tiling master bathroom shower, herringbone subway

We installed the Carrera Marble 3” hexagon floor tiles next, which compared to the herringbone tiling it was a walk in the park! Then after the tile was set, 72 hours I think, we went back and installed the last row of wall tile.

Tiling master bathroom shower, herringbone subway and carrera marble

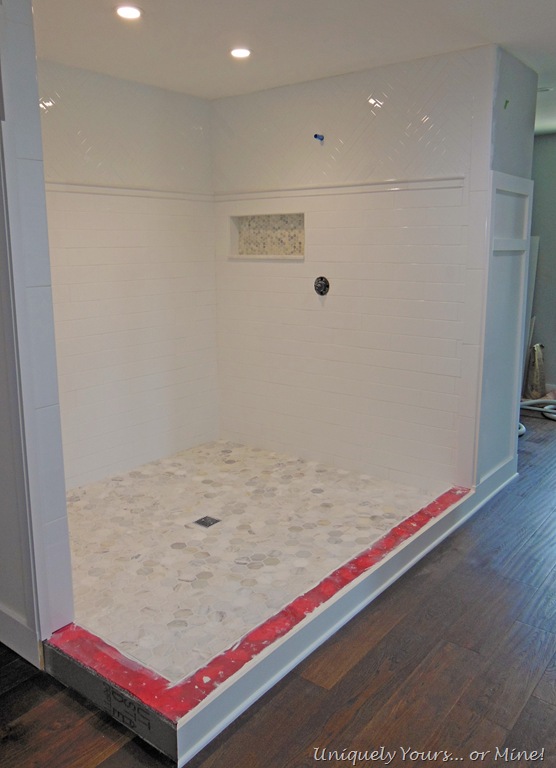

The shower sat ungrouted for a VERY long time while we worked on flooring and other projects, but we finally got it grouted with a white grout. I had originally wanted grey grout but changed my mind pretty much at the last minute…

Tiling master bathroom shower, herringbone subway and carrera marble

We were then in a holding pattern for over a month waiting for the marble to arrive for the vanity tops and the shower curbing, but it was worth the wait to get exactly what we wanted!

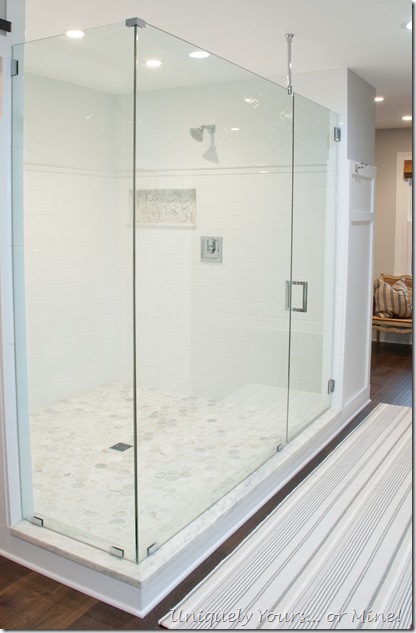

The hardware is all polished chrome and its as frameless as the glass guys could build it considering the size…

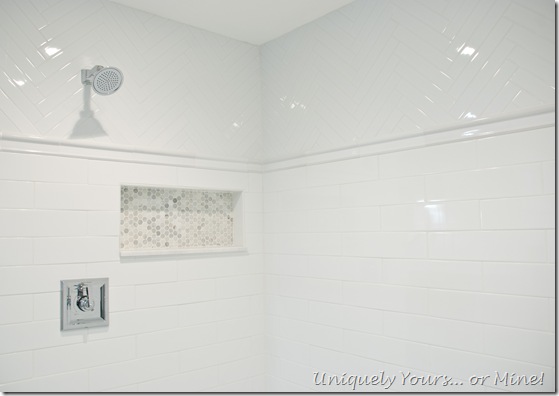

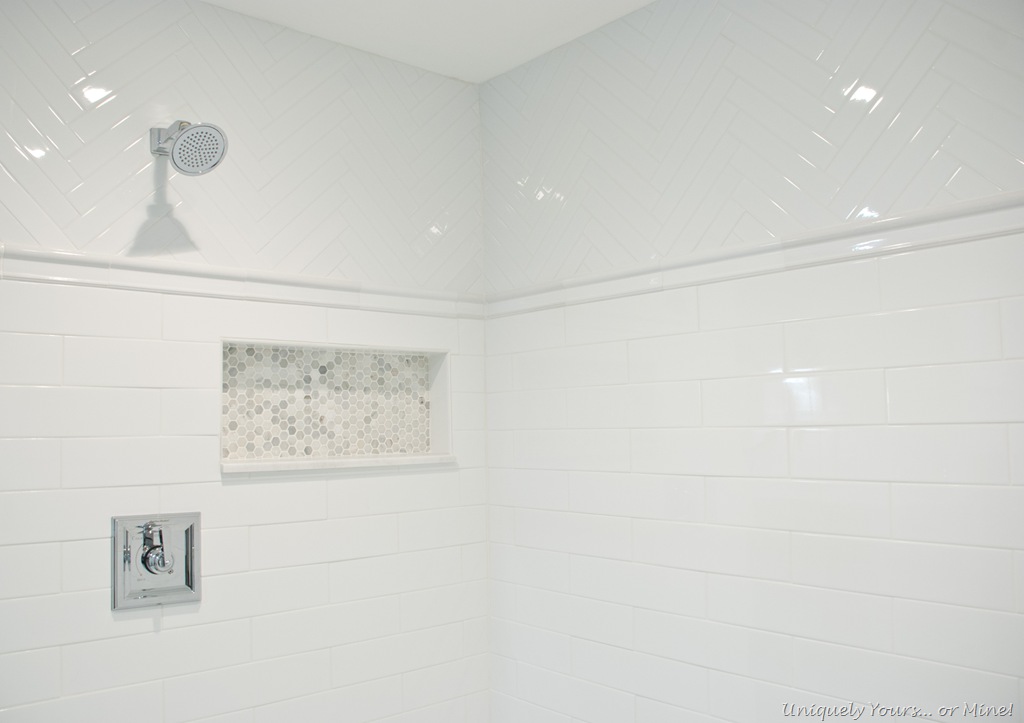

Master bathroom shower stall, white ceramic herringbone and subway with Carrera hexagon tile floors

The setup we chose for the shower heads was very simple, 2 heads one on either side of the shower. We gave this a ton of thought and we decided that we wouldn’t use a bunch of different spray heads or a rain shower head often enough to justify the additional cost.

Master bathroom shower stall, white ceramic herringbone and subway with Carrera hexagon tile floors

Each of the heads has it’s own max temperature setting, mine VERY hot, my hubby luke warm… The heads and trim package are a chrome American Standard set.

Master bathroom shower stall, white ceramic herringbone and subway with Carrera hexagon tile floors

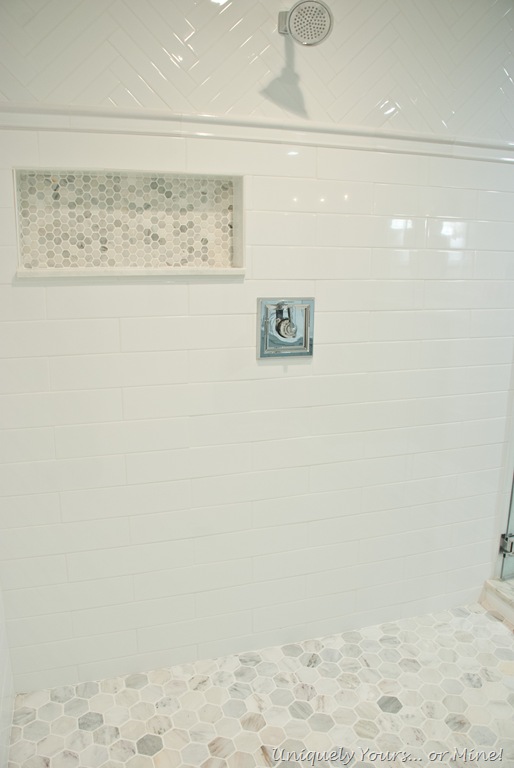

We actually used a marble threshold for the bottom of the niches, it worked perfectly and was significantly cheaper than other options.

Master bathroom shower stall, white ceramic herringbone and subway with Carrera hexagon tile floors

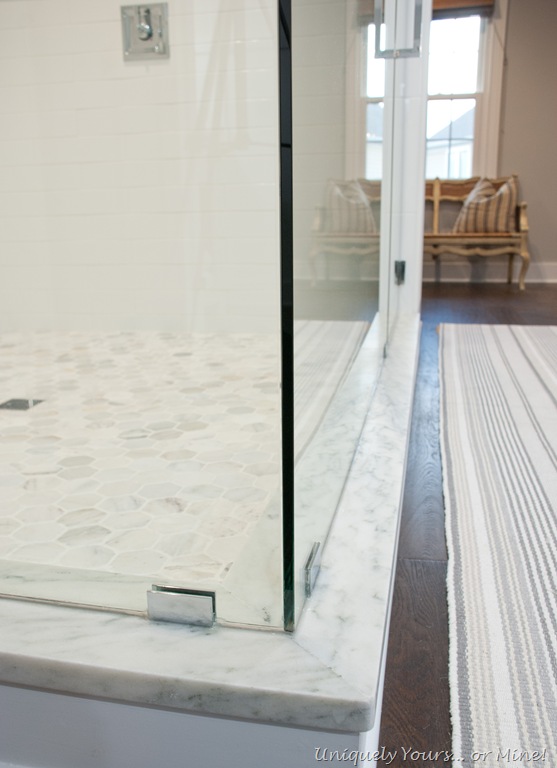

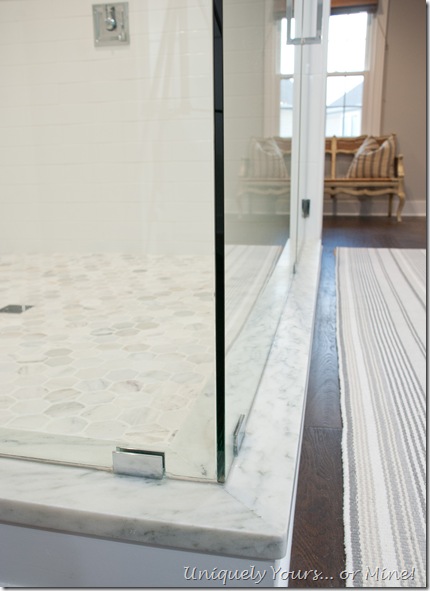

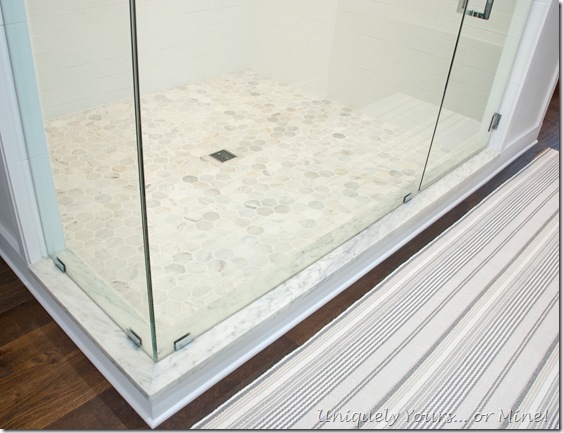

I really love how the curb turned out. It coordinates with the Carrera marble but because it is so thick and solid I think it really shows well! The curbs are White Danby Vermont Marble in a honed finish.

Master bathroom shower stall, white ceramic herringbone and subway with Carrera hexagon tile floors and White Mountain Danby Marble curb

Master bathroom shower stall, white ceramic herringbone and subway with Carrera hexagon tile floors and White Mountain Danby Marble curb

Master bathroom shower stall, white ceramic herringbone and subway with Carrera hexagon tile floors and White Mountain Danby Marble curb

Even though I’m more of a bather than a shower-er I really do love this setup! It’s obliviously plenty big for two of us to shower at the same time and with the ability to have our own temperature settings it makes it that much more enjoyable.

I do have one “complaint” with the shower, which at first when I saw it I thought I would cry, but I have sense gotten used to it… you see the glass surround distorts the color of the tile! I had no idea that the glass would have a slight green/blue hue to it so the tile doesn’t look white. I was not given the option of a pure colorless glass and when I spoke to the glass guy he indicated that this glass was the norm. I researched it a bit and found that colorless glass is available (not sure at what expense) so do consider that option if you are going to install glass in your shower… just a thought!

Thanks so much for stopping by!

K
